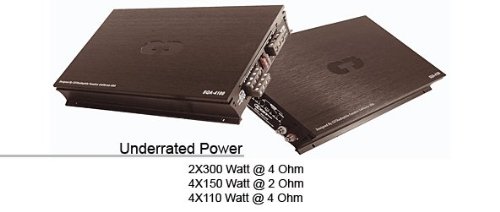

CDT Audio SQA-4100 4/3/2 Channel 600 WRMS Power Amplifier

Brand: CDT Audio    Model : SQA-4100

CDT Audio SQA-4100 4/3/2 Channel 600 WRMS Power Amplifier Feature

• RMS @ 4 Ohm 110 x 4 Ch, RMS @ 2 Ohm 150 x 4 Ch, RMS @ 4 Ohm 300 x 2 Ch
• S/N RATIO >100dB, THD (IHF-A) 0.03%
• CHANNEL SEPARATION >55dB, DIMENSIONS 230.3 mm x 55.0 mm x 450.0 mm
• INPUT SENSITIVITY 0.15V – 5V, IMPUT IMPEDANCE 47 KOhm
• SLEW RATE 10V / usec, DAMPING FACTOR 200 @ 4 OHM,

CDT Audio SQA-4100 4/3/2 Channel 600 WRMS Power Amplifier Overviews

SQA-4100 is a four channel dually bridgeable amp and provides a continuous maximum of 150 Watts per channel from each of 4 channels into 2 Ohms. CDT SQA-4100 will also provide a continuous maximum of 300 Watts bridged from each of two pairs of channels inqato 4 Ohms

CDT amplifiers have evolved over decades to include those components and design features, which provide optimal performance and virtually eliminate problems. No money has been wasted, building-in features that make no difference to the performance or reliability. On the other hand every conceivable problem has been anticipated and protection to the degree it is feasible has been included in CDT amplifier. This represents a best of breed philosophy in the industry.
The CDT clean looking amplifier line adheres to the most stringent engineering principles to bring you an unparalleled listening experience in the automotive environment. We offer a very flexible multi use amplifier Guaranteed values and a detailed power specification of each model. Typical power values are approximately much higher than rated, a specific individual birth/test sheet is supplied with each amplifier.
SQA-4100 Mosfet Class AB amplifier have internal variable 24/db per octave high and low pass adjustable crossovers. Built-in subsonic filter. 5 way protections. 2 Ohm Stable circuits. Soft Start/mute circuit. Trimode output configuration. Daisy chain through output RCA. Input level controls. The amplifier utilize massive robust power supplies and amplification stages for the maximum installed flexibility, impact reliable performance.

*** Product Information and Prices Stored:Oct 01, 2010 04:03:06
