CAT5 – COMPOSITE VIDEO, DIGITAL & STEREO AUDIO RECEIVER SB-6235R

Brand: Shinybow

CAT5 – COMPOSITE VIDEO, DIGITAL & STEREO AUDIO RECEIVER SB-6235R Feature

• Composite Video or Digital Audio CAT5 Receiver
• Category UTP cable maximum length to 1000 ft
• Brushed aluminum case with mounting brackets
• 1 CAT5 Input, 1 CAT5 Output
• 1 Composite Video + Stereo Audio -or- Digital Audio Output

CAT5 – COMPOSITE VIDEO, DIGITAL & STEREO AUDIO RECEIVER SB-6235R Overviews

CAT5 Video Splitter Extender extends video signals up to 300 meters (1000ft) using inexpensive CAT5 / CAT6 UTP cable. A video extender consists of both a transmitter and receiver. The transmitter connects to your local video source and allows you to extend to a single or multiple remote receivers. Cat5 Composte video Splitter extender via Cat5 is the ideal solution for applications to display the same image on multiple remote locations. These AV splitter extenders are commonly used at restaurants, bars, clubs and other HDTV environments for video broadcasting such as remote monitoring, presentations and advertising. Please note VGA Remote Transmitters are not included and must be purchased separately along with the Splitter/Extender for correct functionality.

Product Features :

• Composite Video or Digital Audio CAT5 Receiver
• Category UTP cable maximum length to 1000 ft
• Brushed aluminum case with mounting brackets
• 1 CAT5 Input
• 1 CAT5 Output
• 1 Composite Video + Stereo Audio -or- Digital Audio Output
• Lower power consumption, full load under 300 mA
• Tint and Brightness control

Specifications :

• Power supply – 12VDC, 300mA
• Distortion – -80dB total harmonic @ 1 MHz: Rl = 100 ohms
• Video input level – 1.45V (p-p) max.
• Video bandwidth – 450MHz, -3dB
• Slew rate – 1600V/?s
• Dimensions – 3″ x 2.75″ x 1″ inches
• Housing – Aluminum

Package Contents:

• Cat5 Composite Video – Stereo Audio Receiver + Repeater
• AC/DC Adapter: DC12V 300mA
• Surface mount bracket

Regulatory Approvals:

• CE, FCC, VCCI & RoHS(2002/95/EC)

*** Product Information and Prices Stored:Oct 12, 2010 18:34:05

Friends Link : ge dishwashers review 125 Home Loans Reviews stainless steel dishwasher review accordion reviews best price

CAT5 – COMPOSITE VIDEO, DIGITAL & STEREO AUDIO RECEIVER SB-6235R

Brand: Shinybow

CAT5 – COMPOSITE VIDEO, DIGITAL & STEREO AUDIO RECEIVER SB-6235R Feature

• Composite Video or Digital Audio CAT5 Receiver
• Category UTP cable maximum length to 1000 ft
• Brushed aluminum case with mounting brackets
• 1 CAT5 Input, 1 CAT5 Output
• 1 Composite Video + Stereo Audio -or- Digital Audio Output

CAT5 – COMPOSITE VIDEO, DIGITAL & STEREO AUDIO RECEIVER SB-6235R Overviews

CAT5 Video Splitter Extender extends video signals up to 300 meters (1000ft) using inexpensive CAT5 / CAT6 UTP cable. A video extender consists of both a transmitter and receiver. The transmitter connects to your local video source and allows you to extend to a single or multiple remote receivers. Cat5 Composte video Splitter extender via Cat5 is the ideal solution for applications to display the same image on multiple remote locations. These AV splitter extenders are commonly used at restaurants, bars, clubs and other HDTV environments for video broadcasting such as remote monitoring, presentations and advertising. Please note VGA Remote Transmitters are not included and must be purchased separately along with the Splitter/Extender for correct functionality.

Product Features :

• Composite Video or Digital Audio CAT5 Receiver
• Category UTP cable maximum length to 1000 ft
• Brushed aluminum case with mounting brackets
• 1 CAT5 Input
• 1 CAT5 Output
• 1 Composite Video + Stereo Audio -or- Digital Audio Output
• Lower power consumption, full load under 300 mA
• Tint and Brightness control

Specifications :

• Power supply – 12VDC, 300mA
• Distortion – -80dB total harmonic @ 1 MHz: Rl = 100 ohms
• Video input level – 1.45V (p-p) max.
• Video bandwidth – 450MHz, -3dB
• Slew rate – 1600V/?s
• Dimensions – 3″ x 2.75″ x 1″ inches
• Housing – Aluminum

Package Contents:

• Cat5 Composite Video – Stereo Audio Receiver + Repeater
• AC/DC Adapter: DC12V 300mA
• Surface mount bracket

Regulatory Approvals:

• CE, FCC, VCCI & RoHS(2002/95/EC)

*** Product Information and Prices Stored:Aug 23, 2010 02:28:03

Friends Link : 8×42 binocular review celestron binoculars review Discount Club Chair HourSale Cheap Electric Kettles Best Sale ITBestSale

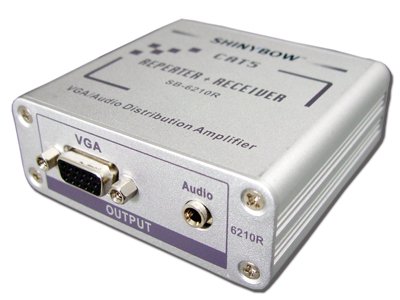

CAT5 PC VGA RGBHV Video + Audio Receiver + Repeater with Loop Out (Senders Sold Separately)

Brand: Shinybow    Model : SB-6210R

CAT5 PC VGA RGBHV Video + Audio Receiver + Repeater with Loop Out (Senders Sold Separately) Feature

• VGA RGBHV Video and Audio CAT5 Receiver
• Triple high speed differential driver
• 1 CAT5 Input
• 1 CAT5 Output
• 1 VGA (15HD) Output w/stereo audio

CAT5 PC VGA RGBHV Video + Audio Receiver + Repeater with Loop Out (Senders Sold Separately) Overviews

CAT5 VGA Video Splitter Extender extends video signals up to 300 meters (1000ft) using inexpensive CAT5/6 UTP cable. A video extender consists of both a transmitter and receiver. The transmitter connects to your local video source and allows you to extend to a single or multiple remote receivers. Cat5 video Splitter extender via Cat5 is the ideal solution for applications to display the same image on multiple remote locations. These AV splitter extenders are commonly used at restaurants, bars, clubs and other environments for video broadcasting such as remote monitoring, presentations and advertising. Please note VGA Remote Transmitters are not included and must be purchased separately for correct functionality.

Features:

• 225 Mhz , -3dB large signal bandwidth
• 450Mhz , -3dB small signal bandwidth
• Supported resolutions:
• VGA 640 x 480 up to 1000ft
• SVGA 800 x 600 up to 600ft
• XGA 1024 x 768 up to 450ft
• UXGA 1600 x 1200 up to 300ft
• WUXGA 1900 x 1200 up to 100ft
• Category UTP cable maximum length to 1000 ft
• Brushed aluminum case with mounting brackets
• Lower power consumption, full load under 300 mA
• Tint and Brightness control

Specifications:

• Power supply: 12VDC, 300mA
• Distortion: -80dB total harmonic @ 1 MHz: Rl = 100 ohms

• Video input level: 1.45V (p-p) max.
• Video bandwidth: 450MHz, -3dB
• Slew rate: 1600V/?µs
• Dimensions: 3 x 2.75 x 1 inches
• Housing: Aluminum
• Regulatory Approvals: CE, FCC, VCCI & RoHS(2002/95/EC)

Package Includes:

• Cat5 VGA RGBHV – Stereo Audio Transmitter

• AC/DC Adapter: DC12V 300mA
• Surface mount bracket

*** Product Information and Prices Stored:Aug 22, 2010 19:40:39

See Also : indoor batting cage harry potter costume reviews best price flute reviews best price

Shinybow Component Video Cat5 Receiver, A/V Amplifiers/Extenders/Converters

Brand: Shinybow    List Price : $112.50    Sale Price : $112.50

Shinybow Component Video Cat5 Receiver, A/V Amplifiers/Extenders/Converters Feature

• Connect your audio/video device quickly and neatly with one excellent quality cable!
• Easy Plug and Play use.
• High-speed

Shinybow Component Video Cat5 Receiver, A/V Amplifiers/Extenders/Converters Overviews

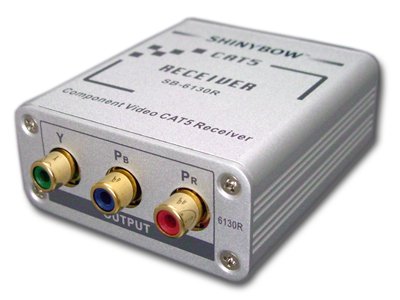

Shinybow Component Video Receiver: SB-6130R

A compact receiver to receive Component Video signals over long distances (up to 1000ft) to a Cat5 Shinybow receiver. SB-6130R has Cat5 input and Component Video Output . SB-6130R can be used with different transmitter options:

SB-6130 ( Component Video Input / 1 x Cat5 Output)
SB-6230 (Component Video Input / 2 x Cat5 Outputs)
SB-6340 (Component Video Input / 4 x Cat5 Outputs + local Component Video Output)
Note: Please Review Diagram and Specifications sheet prior purchasing.

Features:
Easy to install and highly reliable (commercial grade product)
Supports High Resolutions: 480p, 576p, 720p, 1080i and 1080p
Supports multiple video formats: YPrPb, YCrCb, YUV
Brightness and Tint adjustments
Long Distance Extension:
200ft for 1080p
350ft for 1080i
450ft for 720p
600ft for 576p
1000ft for 480p.

Technical Specifications:

Input: RJ-45 (Cat5)
Output 1 x Component Video (3-RCA)
Brushed aluminum case with mounting brackets
LED power ON indicator
Resolutions support up to 1080p
Video Bandwidth: 450Mhz (small signal bandwidth), 225Mhz (large signal bandwidth)
Output Balance Error : -60dB @ 50MHz
High isolation: 80dB @ 10 Mhz
Power Supply: DC 12V / 300mA
Dimensions: 2.6 x 2.75 x 1-(inch).
Price is for each.
