SAZ-4500D – Sundown Audio 4500W 1-Channel Monoblock Amplifier

Brand: Sundown Audio    Model : SAZ-4500D

SAZ-4500D – Sundown Audio 4500W 1-Channel Monoblock Amplifier Feature

• 4500W 1-Channel Monoblock Amplifier
• Efficiency : 86% @ 4 ohm, at 100Hz
• 24dB/Oct Variable Crossover
• Multi-Way Protection Circuitry
• (Thermal/Over Current/Speaker Short/Speaker DC Protection)

SAZ-4500D – Sundown Audio 4500W 1-Channel Monoblock Amplifier Overviews

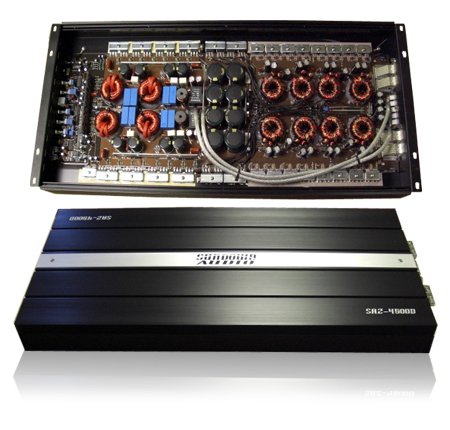

The SAZ-4500D is the largest and most powerful amplifier produced by Sundown Audio. It features a newly tooled extra wide casing to contain the massive circuit board and dual pairs of 1/0 power/ground terminals. If you need the most possible Sundown Audio power then look no further than the SAZ-4500D! This is a serious SPL competition amplifier featuring EIGHT power supply transformers and THIRTY TWO power supply MOSFETs.

This amplifier can draw HUGE amounts of current – in excess of 500 amps – you MUST have a very large high output alternator (250-300 or more amps) AND 3-4 Group-31 batteries to power this amplifier (we suggest XS Power D3100s or Stinger SP2150s). Without such electrical system upgrades the warranty is void as they are a *requirement* to run an amplifier this large. We suggest installation only by professional and/or experienced installers for this amplifier.

* Double Sided Through Hole Epoxy PCB
* Efficiency : 86% @ 4 ohm, at 100Hz
* 24dB/Oct Variable Crossover
* Multi-Way Protection Circuitry
* (Thermal/Over Current/Speaker Short/Speaker DC Protection)
* Variable Subsonic Filter
* Variable Bass Boost
* Variable Low Pass Filter
* Variable Phase Shift
* Dual Zero(0) Gauge Power Supply Connectors
* Tested Voltage & THD : 12.8V & Less than 1% THD
* Operating Voltage : DC 10V~18V (Absolute Maximum 18.5 volts)
* Digital Class-D Linkable Mono Block Amplifier
* 1 Ohm Stability
* Wired Remote Controller

RMS power, 2 ohm linkable/dual mono
9000W x 1CH

RMS power, 1 ohm mono
4500W x 1CH
RMS power, 2 ohm mono 2000W x 1CH

RMS power, 4 ohm mono
900W x 1CH
Signal to Noise Ratio >90dB
Low pass frequency crossover
35Hz~300Hz
Subsonic filter 10Hz~50Hz
Bass boost @ 45Hz 0~9dB
Phase shift control 0~180 degree
Frequency response 10Hz~250Hz (+/- 1dB)
T.H.D @ 4 ohm <0.1%
Efficiency @ 4 ohm 86%
Fuse rating 500A (external type fuse)
Input Sensitivity 200mV to 6V (+/- 5%)
Dimensions 12.2"(W) x 2.68"(H) x 25.59"(L)

*** Product Information and Prices Stored:Nov 11, 2010 17:04:10

See Also : night vision binoculars review Wine Cellar Reviews storage cabinet reviews best price

SAX-100.4D – Sundown Audio 100W 4-Channel Amplifier

Brand: Sundown Audio    Model : SAX-100.4D

SAX-100.4D – Sundown Audio 100W 4-Channel Amplifier Feature

• 4/3/2 Channel Bridgeable Class-AB Amplifier
• MOSFET PWM Power Supply
• Stable Into 4 Ohms Bridged or 2 Ohms Stereo Load
• Variable Subsonic Filter
• Independent 1/2 and 3/4 Channel High Pass Filter Variable

SAX-100.4D – Sundown Audio 100W 4-Channel Amplifier Overviews

The SAX-100.4 is built to the same exacting standards as the SAX-125.2 but adds another set of channels and more advanced crossovers. It’s flexible crossovers allow the user to run a 2-way active speaker setup with no external processing. It packs enough punch that one could also run a set of front speakers with one pair of channels and a subwoofer, bridged, on the other pair of channels for use as a total system amplifier where high power is not required.

The latest “D” revision features industry leading crossover flexibility even more advanced than prior versions and also features and upgraded power supply section for more power and enhanced longevity.

* Independent 1/2 and 3/4 Channel High Pass Filter Variable
* with x 10 Range Selectable Switch
* Independent 1/2 and 3/4 Channel Low Pass Filter Variable
* with x 10 Range Selectable Switch
* HPF/FULL/LPF Selectable Switch
* Independent 1/2 and 3/4 Channel Electronic Crossover Slope Selectable
* Switch with 12dB and 24dB Octave
* Variable Input Level Control
* Input Sensitivity : 200mV ~ 6V
* Subsonic Filter : 10Hz ~ 500Hz
* Signal Input and Line Out RCA Connectors
* Tested Voltage & THD: 14.4V & Less than 0.05% THD
* Operating Voltage : DC10V~16V Power Input
* Wired Remote Controller

RMS power, 4 ohm stereo
100W x 4CH
RMS power, 2 ohm stereo
160W x 4CH
RMS power, 4 ohm bridged
320W x 2CH
Signal to Noise Ratio >90dB
Low pass frequency crossover
50Hz~5kHz (CH1&2)
50Hz~5KHz (CH3&4)
(50-500 with x10 switch)
Selectable 12 or 24 dB slope
High Pass Crossover
50Hz~5kHz (CH1&2)
50Hz~5kHz (CH3&4)
(50-500 with x10 switch)
Selectable 12 or 24 dB slope
Variable Subsonic Filter 10Hz to 500Hz
Frequency Response 10Hz ~ 40KHz (+/-1dB)
Bass Boost 0~18dB
Variable Bass-Boost Frequency Control 35Hz to 120Hz
THD@RMS Watts <0.1%
Channel Separation 75dB
Fuse Rating 30A x 3
Input Sensitivity Variable 200mV~6V (+/- 5%)
Dimensions 252(W) x 58(H) x 480(L)mm

*** Product Information and Prices Stored:Nov 09, 2010 13:09:04

Visit : loans secured Blanco HourSale.net Rick James Download Floorstanding Speaker Reviews Best Price ITBestSale

SAZ-1000D – Sundown Audio 1000W 1-Channel Monoblock Amplifier

Brand: Sundown Audio    Model : SAZ-1000D

SAZ-1000D – Sundown Audio 1000W 1-Channel Monoblock Amplifier Feature

• 1000W Digital Class-D Linkable Mono Block Amplifier
• Double Sided Through Hole Epoxy PCB
• 1 Ohm Stability
• Efficiency : 86% @ 4 ohm, at 100Hz
• Multi-Way Protection Circuitry (Thermal/Over Current/Speaker Short/Speaker DC Protection)

SAZ-1000D – Sundown Audio 1000W 1-Channel Monoblock Amplifier Overviews

The SAZ-1000D is our most compact Class-D amplifier and can fit almost anywhere! Don’t let the small size fool you as this amplifier packs 1000-watts RMS into a tiny package only 11.5 inches long.

* Digital Class-D Linkable Mono Block Amplifier
* Double Sided Through Hole Epoxy PCB
* 1 Ohm Stability
* Efficiency : 86% @ 4 ohm, at 100Hz
* 24dB/Oct Variable Crossover
* Multi-Way Protection Circuitry (Thermal/Over Current/Speaker Short/Speaker DC Protection)
* RCA Line Input and Master Output
* 24dB Octave Crossover Slope
* Variable Subsonic Filter
* Variable Bass Boost
* Variable Low Pass Filter
* Variable Phase Shift
* Four(4) Gauge Power Supply Connectors
* Tested Voltage & THD : 14.4V & Less than 1% THD
* Operating Voltage : DC 10V~16V
* Wired Remote Controller

RMS power, 2 ohm linkable/dual mono
1800W x 1CH

RMS power, 1 ohm mono
1000W x 1CH

RMS power, 2 ohm mono
600W x 1CH

RMS power, 4 ohm mono
300W x 1CH
Signal to Noise Ratio >90dB
Low pass frequency crossover 35Hz~300Hz
Subsonic filter 10Hz~60Hz
Bass boost @ 45Hz 0~18dB
Phase shift control 0~180 degree
Frequency response 10Hz~350Hz (+/- 1dB)
T.H.D @ 4 ohm <0.1%
Efficiency @ 4 ohm 86%
Fuse rating 25A x 3
Input Sensitivity 200mV to 6V (+/- 5%)
Dimensions 252(W) x 58(H) x 294(L)mm

*** Product Information and Prices Stored:Sep 14, 2010 15:54:26
